Why Revit Rejects Geometry: Constraints Explained

Your Rhino polysurface won't import into Revit. The error: "Revit cannot import some of the geometry." Which geometry? Unspecified. What constraint did it violate? Unknown. You adjust tolerances, rebuild surfaces, simplify control points. On the fourth attempt, it imports. What changed? Still unclear.

Revit isn't asking whether geometry looks right on screen. It's asking whether geometry describes something physically constructible. Can this be fabricated with CNC equipment operating at real-world precision? Can the assembly be built within tolerance bands that govern structural steel, precast concrete, and facade systems?

The Validation Framework Behind the Errors

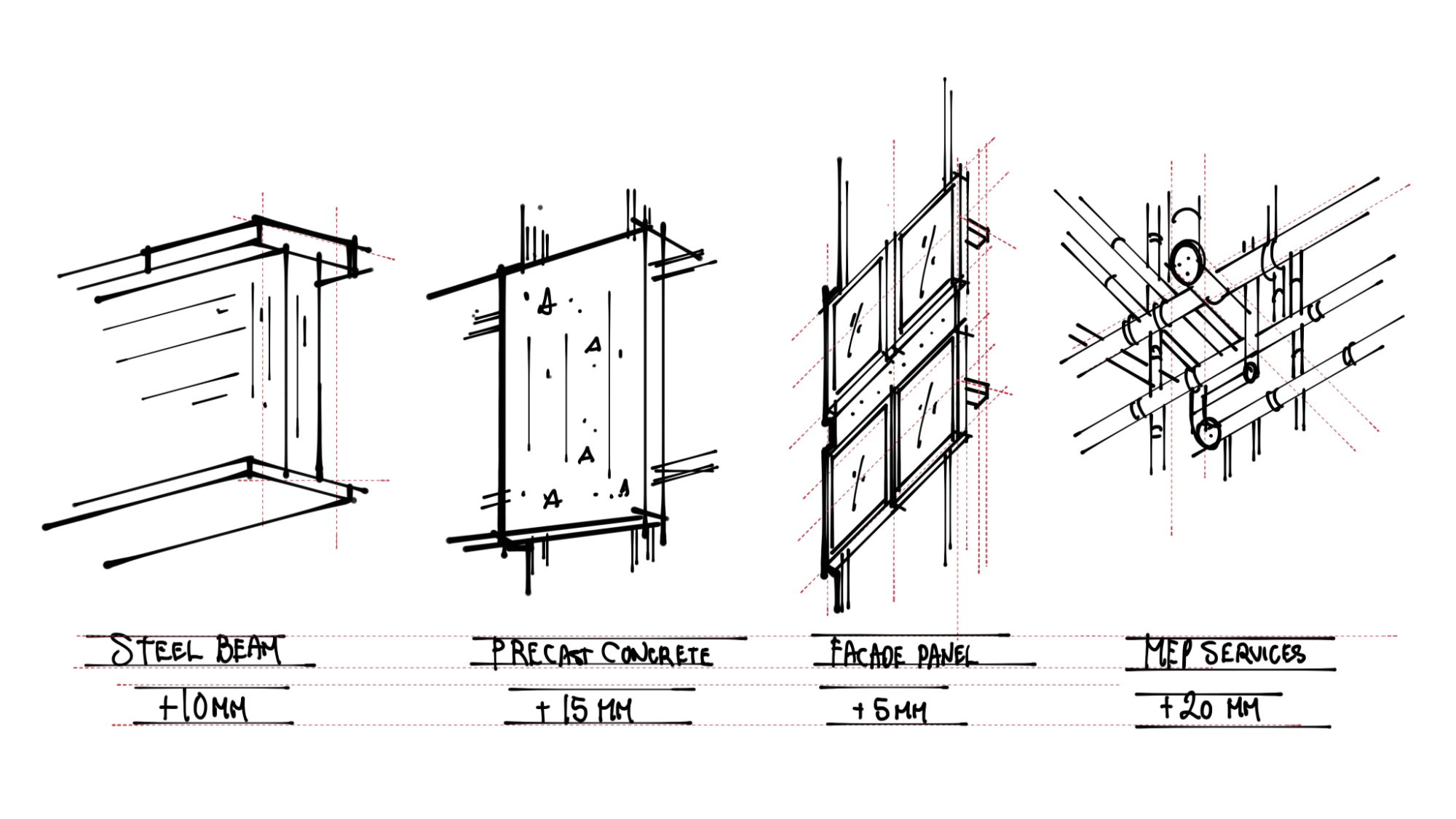

Real-world construction operates in tolerance bands. Structural steel fabrication holds ±3mm typical. Facade panels maintain ±2mm fabrication tolerance. MEP coordination in high-density zones measures conflicts in millimeters. Precast concrete accepts ±6mm typical. These are the precision limits of fabrication equipment and material behavior at scale.

Revit's geometry constraints map directly to these physical realities:

Minimum edge length of 0.8mm aligns with CNC precision machining limits. Fabrication equipment can't reliably produce features smaller than this without specialized tooling. When Revit rejects edges below this threshold, it's asking: can your shop actually manufacture this feature at the documented precision?

NURBS complexity constraints like surface degree, control point distribution, and knot vector structure ensure geometry remains manufacturable through standard forming processes. Panel molds have size limits. CNC routers have movement constraints. Complex NURBS surfaces with non-uniform control point spacing describe forms that may be mathematically valid but physically unfabricated using standard equipment.

Distance from origin limits have a practical ceiling of 16 kilometers, beyond which precision degradation appears. This reflects tolerance accumulation. Measurement precision compounds over distance until accumulated error exceeds acceptable ranges.

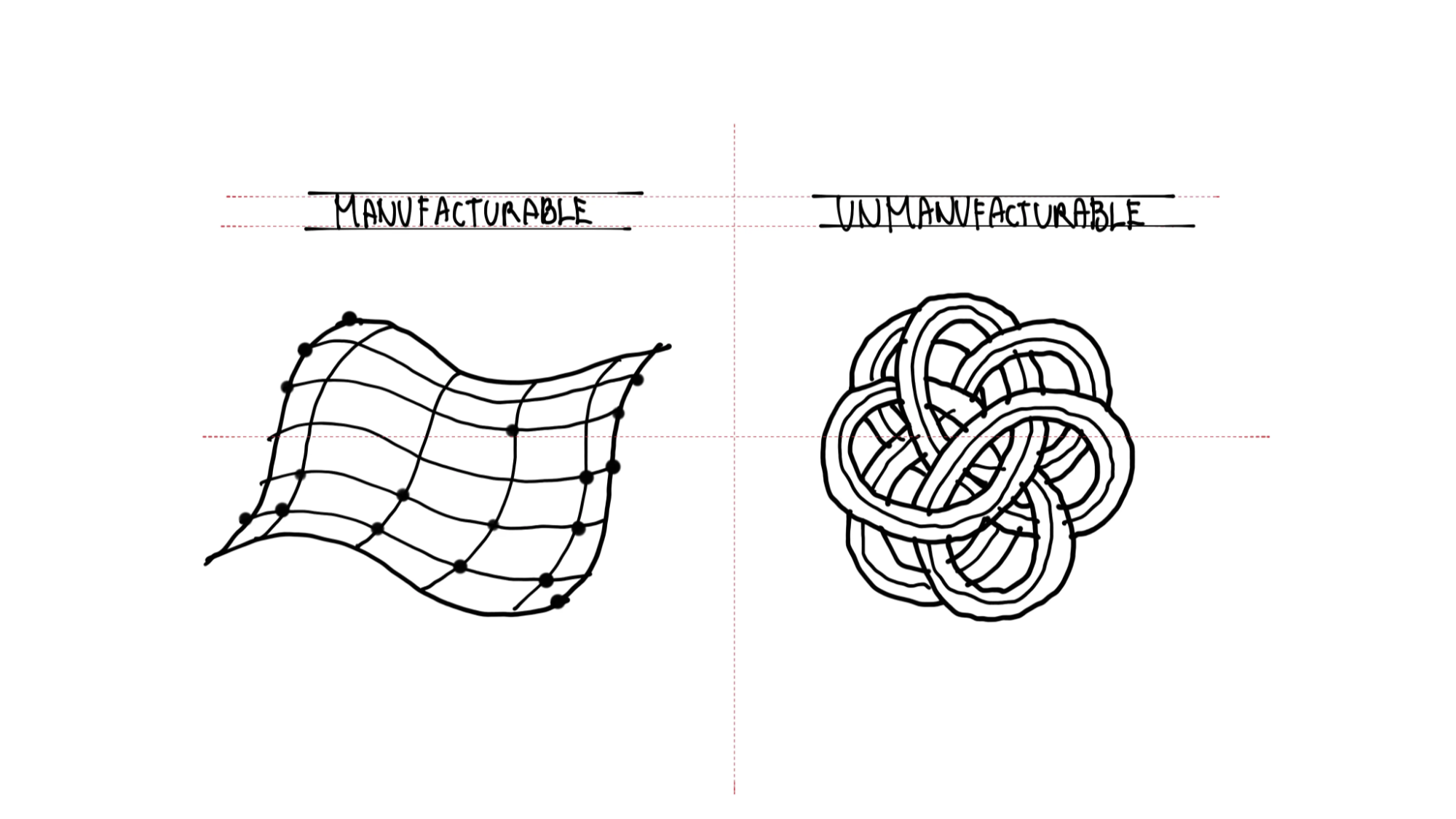

Manifold topology requirements prevent non-manifold edges, naked boundaries, and invalid face relationships that describe geometric configurations which can't exist as constructed objects. They're modeling artifacts. A manifold topology requirement asks: can this geometry be physically manufactured and assembled?

The validation encodes fabrication reality into documentation requirements.

Design Freedom Meets Construction Reality

The core principle is simple. If you can build it in real life, with real materials, real tolerances, real fabrication processes, and real assembly sequences, you can build it in Revit.

Revit's geometry constraints aren't software limitations. They encode fabrication reality. Minimum edge lengths mirror CNC machining limits. Distance-from-origin constraints reflect tolerance accumulation in survey positioning. NURBS complexity requirements align with mold size limits and panel forming capabilities. Manifold topology ensures geometry describes physically constructible configurations.

When transfer succeeds, it confirms the form is manufacturable within standard fabrication tolerances. When transfer fails, it identifies where designed geometry exceeds equipment capabilities or violates physical constructibility. This isn't arbitrary validation. It's early feedback during documentation phase rather than after fabrication contracts are signed.

Real-world construction inherently involves rationalization. You break complex forms into manufacturable panels, adhere to fabrication constraints, work within tolerance bands, and ensure constructability. If you're designing something buildable in real life, you've already accepted material limitations, considered fabrication tolerances, planned for assembly sequences, and ensured structural viability. These are exactly the constraints Revit enforces through its geometry validation rules.

What This Means in Practice

The next time Revit rejects imported geometry, reframe the error. "Revit cannot import some of the geometry" translates to "This geometry violates constraints that mirror real-world fabrication limits."

Ask constructability questions:

Can each panel be manufactured within CNC travel limits? Panel molds have maximum sizes. CNC routers have movement constraints. Can your fabricator actually produce this geometry with their equipment?

Can material bend to documented radii without spring-back exceeding tolerance? Material behavior under forming processes determines what's physically achievable. Sheet metal, glass, composite panels all have minimum bend radii and spring-back characteristics that affect final form.

Are joints physically accessible for fasteners? Edge-to-edge connections require minimum spacing for welding, bolting, or adhesive application. Sub-millimeter features can't accommodate standard fastener sizes.

Can assembly sequences accommodate the documented configuration? Installation order matters. Can panels be positioned without collision? Can workers physically access connection points? Does the geometry allow for construction tolerances during fit-up?

These aren't theoretical questions. They're the questions fabricators and contractors ask when reviewing shop drawings. When Revit's validation rejects geometry, it's performing the same constructability review that would happen later in the process, at higher cost and with schedule impact.

Tools That Validate These Constraints Early

Senibina-Bridge validates geometry against these constraints during transfer, not after fabrication contracts are signed. The tool checks edge lengths, control point distribution, manifold topology, and coordinate positioning as it translates Rhino geometry into Revit families. When geometry violates constraints, you get immediate feedback with specific violations identified.

The tool doesn't fix unbuildable geometry. It translates geometry you've already rationalized in Rhino, handling the tedious documentation work like family creation, parameter setup, subcategory mapping, and coordinate preservation. The rationalization that makes forms manufacturable happens in your design process. Bridge validates that rationalization succeeded and documents it efficiently.

Common Rhino Revit Import Questions

❓ Why does my Rhino geometry fail to import into Revit?

✅ Revit validates against fabrication constraints: minimum edge length (0.8mm), NURBS complexity limits, manifold topology, and distance-from-origin thresholds. Manual DWG/SAT imports create DirectShapes with limited validation feedback.

❓ What's the difference between DirectShape and FreeFormElement in Revit?

✅ DirectShapes are visualization-only geometry with painted materials. FreeFormElements are native Revit families with parametric behavior, material properties, and full coordination capability.

❓ How can I fix Rhino Revit import problems?

✅ Use programmatic tools that create FreeFormElements directly, avoiding manual import workflows. These tools validate geometry against fabrication constraints during transfer and provide specific feedback on violations.

When Rejection Reveals Buildability

Geometry constraints encode fabrication intelligence. When geometry transfers successfully, it carries implicit confirmation that this form can be built with real equipment, real materials, and real assembly processes. When rejection occurs, it flags where designed forms exceed fabrication capabilities before those conflicts reach the shop floor.

The constraints aren't limits to circumvent. They're fabrication validation embedded into documentation workflows. Catching fabrication conflicts during documentation costs hours. Catching them during fabrication costs weeks and substantial budget.

Your path forward:

• Audit your current transfer workflow for common rejection patterns
• Document which geometry types consistently fail validation and why
• Build fabrication constraints into your design process, not your documentation cleanup
• Test critical geometries early in schematic phases when changes cost less
• Validate that your rationalization approach produces manufacturable forms before entering documentation

The constraints that govern geometry transfer are the same constraints that make construction possible. Design with them, and documentation becomes efficient. Ignore them, and every handoff needs rework.
