The Real Lifecycle Cost of Imported Geometry

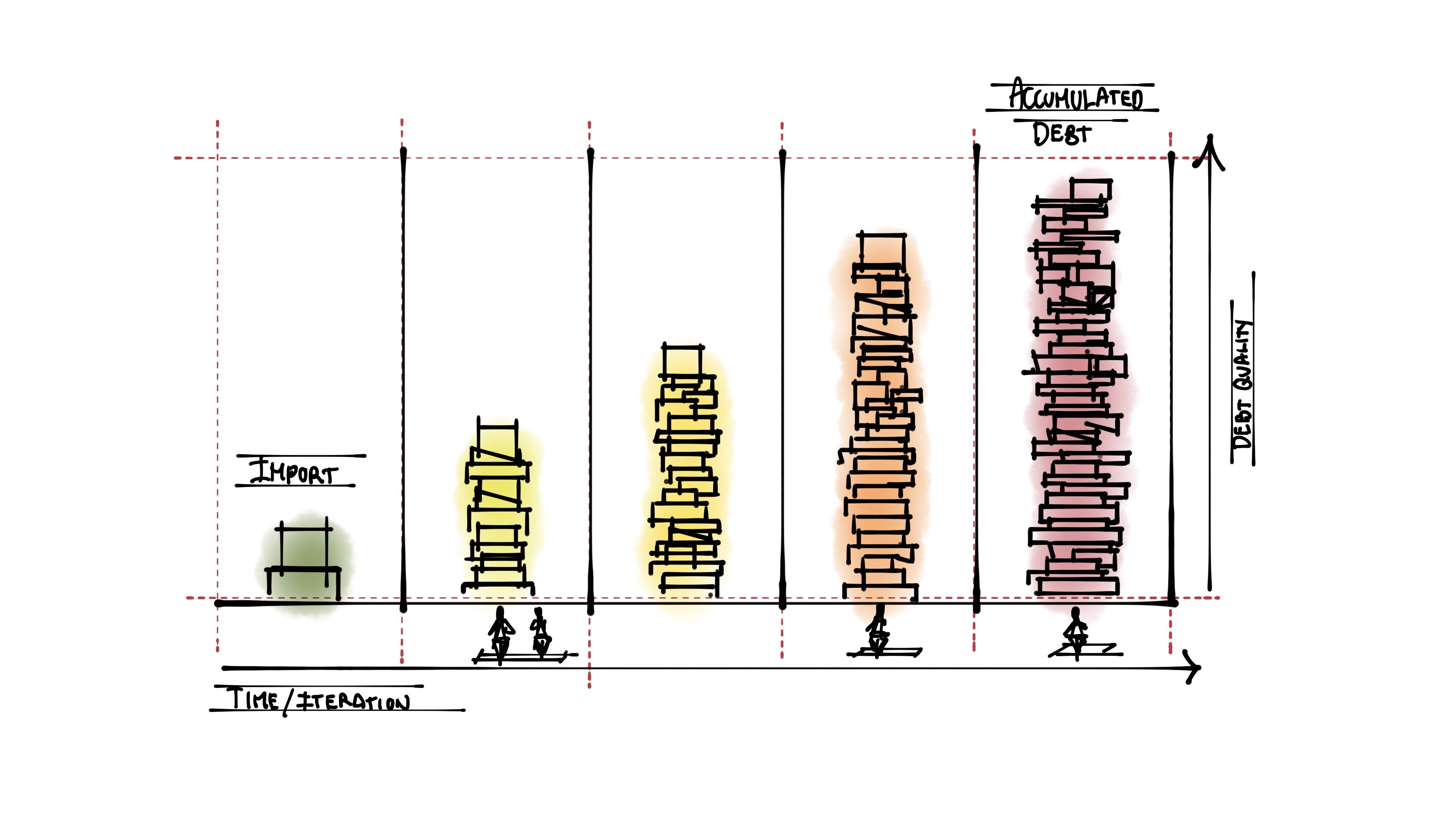

Technical debt accumulates: one import decision compounds across every project iteration.

Most architecture and design consultancies are accumulating technical debt they don't realize they have. The symptoms appear gradually: section views that require manual fixes, material assignments that fail mysteriously, coordination models that slow to a crawl. By the time the problems become obvious, the debt is substantial.

The source: imported geometry (SAT, DWG, STEP files) treated as "fast enough" during modeling, creating downstream costs that compound across every project phase.

I spent years across both construction and architecture consultancy watching this pattern repeat. Design teams would import geometry from various sources (SAT files from Rhino, DWG exports, STEP files) to save time during modeling. Weeks later, the BIM coordination team would spend days troubleshooting failures that native geometry would have avoided entirely.

The practice accumulates debt: today's shortcut becomes tomorrow's crisis. For architecture and design consultancies navigating increasing BIM adoption requirements, understanding this debt is critical. You're not just adopting BIM. You're establishing workflow patterns that will persist for years.

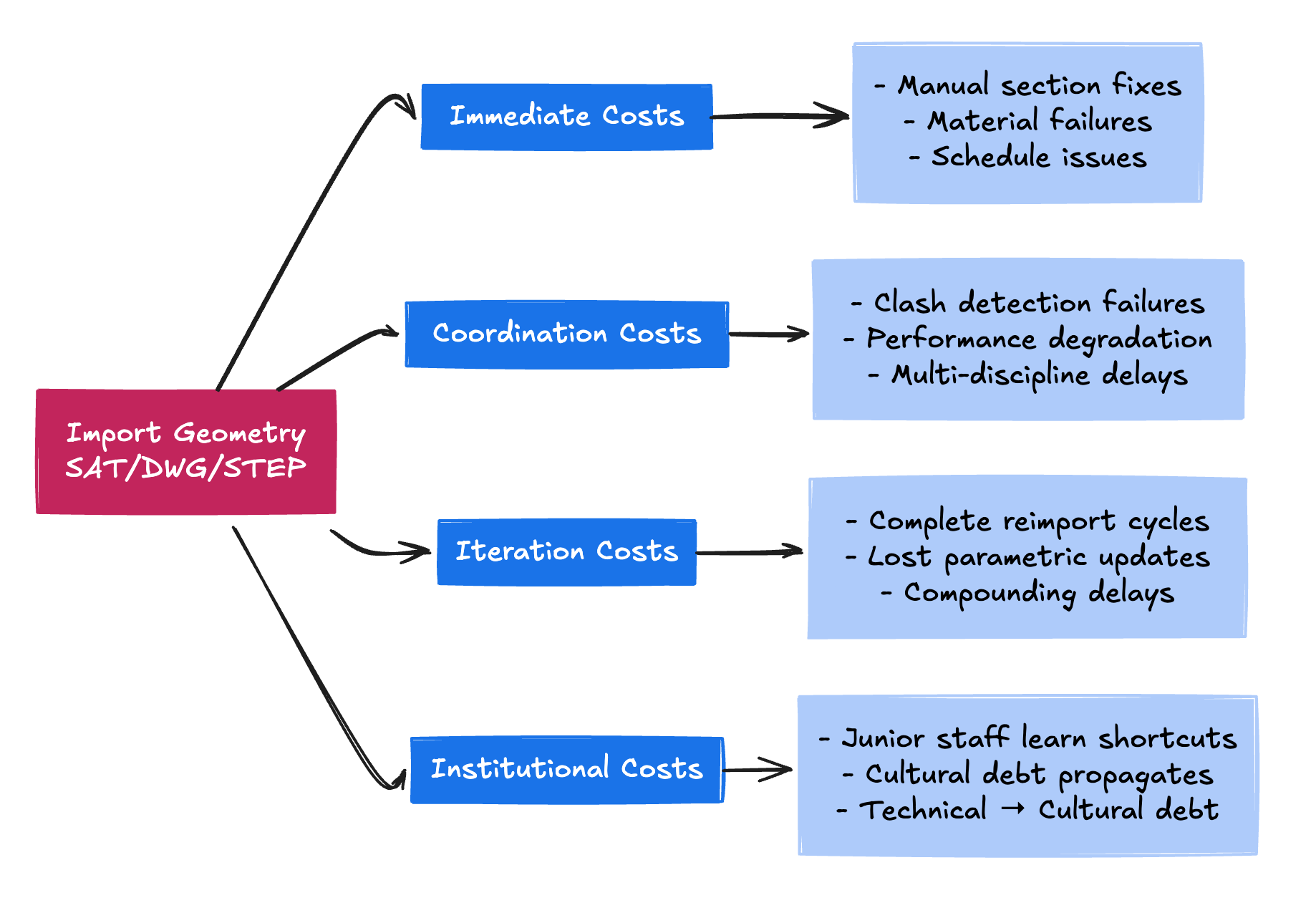

What technical debt looks like in BIM

Software developers understand technical debt: shortcuts that save time now but create maintenance overhead later. The concept applies directly to BIM workflows, but with a crucial difference. In software, debt compounds within codebases. In BIM, debt compounds across project teams, disciplines, and timelines.

Immediate costs: Section views require manual intervention. Materials won't assign correctly. Schedules can't populate from imported geometry. These issues affect all direct imports, whether SAT (Standard ACIS Text—the native format for ACIS geometric modeling kernel), DWG, or STEP files that create DirectShapes or non-parametric elements in Revit. These problems demand hours of troubleshooting per occurrence.

Coordination costs: Imported geometry can't participate fully in clash detection or coordination workflows. Consultants working with your coordination model encounter performance issues. Multi-disciplinary meetings slow down while models regenerate.

Iteration costs: Design changes requiring geometry updates force complete reimport cycles. Native parametric families update automatically. The difference compounds across every iteration, and architectural projects iterate constantly.

Institutional costs: Junior architects, designers, and BIM modellers learn workflows based on shortcuts. They import geometry because that's what senior practitioners do, perpetuating patterns without understanding why alternatives exist. Technical debt becomes cultural debt.

The performance misconception

The most persistent misconception justifying imports: "The imported file is only 500KB, the native family is 4MB. Obviously the import performs better."

File size and performance don't correlate the way this logic assumes. Revit's memory model treats native and imported geometry through entirely different processing paths.

Native Revit geometry uses approximately 20 times its file size in RAM during operation. A 4MB family consumes roughly 80MB working memory. That sounds expensive until you understand what happens with imports.

Imported geometry (SAT, DWG, STEP) creates computational overhead that file size doesn't measure. Revit must continuously recalculate imported geometry because it's non-parametric. Every view update, every zoom operation, every regeneration cycle forces Revit to process imports as foreign data requiring translation.

Native geometry regenerates efficiently through Revit's parametric engine, processing once per regeneration cycle. Imported geometry gets recalculated constantly. The computational cost compounds across every interaction with the model.

This explains why coordination models with extensive imported geometry feel sluggish despite reasonable file sizes. Storage isn't the bottleneck. Processing overhead is, and file size metrics completely miss this distinction.

I've seen this firsthand with pipe arrays in a complex geometry intent. A 500KB imported file might look efficient. But place 200 instances in a coordination model and watch performance collapse. The same pipe array built as native adaptive components might occupy 5MB per family, but the coordination model performs smoothly because Revit processes native geometry through optimized parametric workflows.

File size measures storage cost. Performance depends on computational architecture. Optimizing for the wrong metric creates technical debt that degrades model performance across every subsequent workflow stage.

The FreeFormElement middle ground

Some workflows attempt to bridge imported geometry and native families through FreeFormElements—non-parametric solids created within family files. Understanding where these fit in the technical debt spectrum matters for evaluating workflow options.

FreeFormElements offer improvements over DirectShapes. They support material parameters, exist within family contexts, and can participate in scheduling workflows. Unlike DirectShapes, they preserve UV texture mapping from source software and can interact with native Revit elements through joins and void cuts.

But FreeFormElements still accumulate technical debt. They contain non-parametric geometry that Revit must continuously recalculate, creating the same computational overhead as imported DirectShapes. Section views can fail unpredictably. The geometry can't regenerate parametrically when design changes occur. Performance degrades at scale.

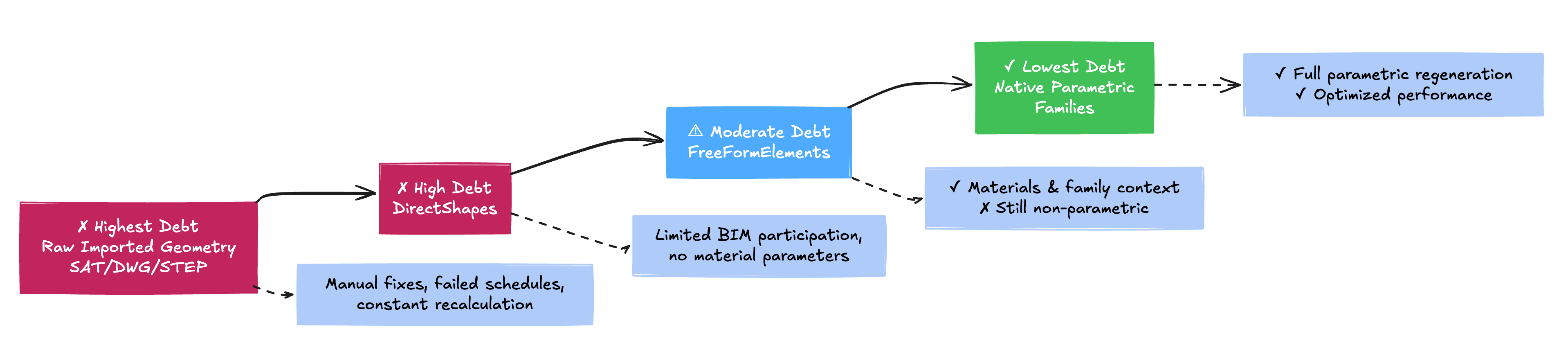

The technical debt spectrum runs from highest to lowest:

Raw imported geometry (SAT/DWG/STEP): Highest debt. Manual coordination fixes, failed schedules, constant recalculation overhead.

DirectShapes: High debt. Limited BIM participation, no material parameters, restricted scheduling capabilities.

FreeFormElements: Moderate debt. Better than DirectShapes (material parameters work, family context exists), but still non-parametric with performance penalties and section view issues.

True native parametric families: Lowest debt. Extrusions, sweeps, blends, adaptive components. Full parametric regeneration, reliable sections, optimized performance, complete BIM participation.

FreeFormElements represent compromise, not solution. They reduce some immediate pain points (material assignment, basic scheduling) but preserve the fundamental problem: non-parametric geometry accumulating computational debt across project lifecycles.

For consultancies establishing BIM workflow foundation, this distinction is strategic. Tools that generate FreeFormElements provide better outcomes than direct imports, but they don't eliminate technical debt. True native parametric families remain the only sustainable approach for coordination-intensive, iteration-heavy architectural projects.

Why practices don't see the debt accumulating

Technical debt in BIM workflows has a specific characteristic: the person making the choice often doesn't experience the full consequence.

The architect or designer imports geometry to meet a deadline. The BIM Coordinator troubleshoots section cuts three weeks later. The structural consultant encounters coordination model performance issues. The facilities manager receives inadequate data for quantity takeoffs.

The cost distributes across teams, disciplines, and project phases. This creates misaligned incentives: the person optimizing for immediate deadlines doesn't directly bear the cumulative cost of that optimization.

Senior architects and designers with decades of successful project delivery using direct geometry imports see no immediate reason to change. The workflows delivered buildings. The debt manifests in other people's timelines or later project phases.

This is classic change management friction compounded by distributed costs. Breaking the pattern requires demonstrating lifecycle costs to decision-makers who control workflow standards. It requires pilot projects with careful time tracking showing cumulative hours spent troubleshooting import-related failures versus time invested in native modeling.

The strategic implications

For architecture and design consultancies worldwide, expanding BIM requirements create urgency around workflow foundation. You're not just adopting BIM for compliance. You're establishing patterns that will define your competitive position for years.

Consultancies that build on native geometry workflows from the start create sustainable BIM infrastructure. Projects iterate cleanly. Coordination runs smoothly. Documentation generates reliably. The absence of technical debt becomes competitive advantage.

Consultancies that treat BIM adoption as compliance exercise often default to familiar shortcuts: import geometry (SAT, DWG, STEP files creating DirectShapes or non-parametric elements), meet immediate requirements, deal with consequences later. The initial adoption looks successful. The debt accumulates invisibly until coordination requirements intensify or project complexity increases.

By the time technical debt becomes obvious (typically 18-24 months into comprehensive BIM adoption), the consultancy has hundreds of projects with imported geometry, institutional workflows built around shortcuts, and training programs teaching problematic patterns to junior architects, designers, and BIM professionals.

Reversing this requires substantial investment: retraining teams, rebuilding family libraries, establishing new standards, and often accepting short-term productivity decreases during transition. The cost of correcting accumulated debt exceeds the cost of establishing sustainable workflows from the start.

The transition period provides a window: establish native geometry as foundational practice before coordination requirements intensify. Consultancies that prepare proactively will handle expanding BIM requirements smoothly. Consultancies that wait will adopt under deadline pressure, when sustainable workflow development becomes difficult.

The tools perspective

Technical debt accumulates partly because generating true native parametric geometry traditionally requires substantial Revit expertise. Learning advanced family modeling takes time. Building parametric intelligence with reference lines, constraints, and formulas demands deep technical knowledge. For many consultancies, particularly smaller practices without dedicated BIM professionals, these barriers justify continued reliance on imports or compromise solutions despite known technical costs.

This is where accessible tooling makes strategic difference. The question: can your team generate native parametric families appropriate for different workflow contexts?

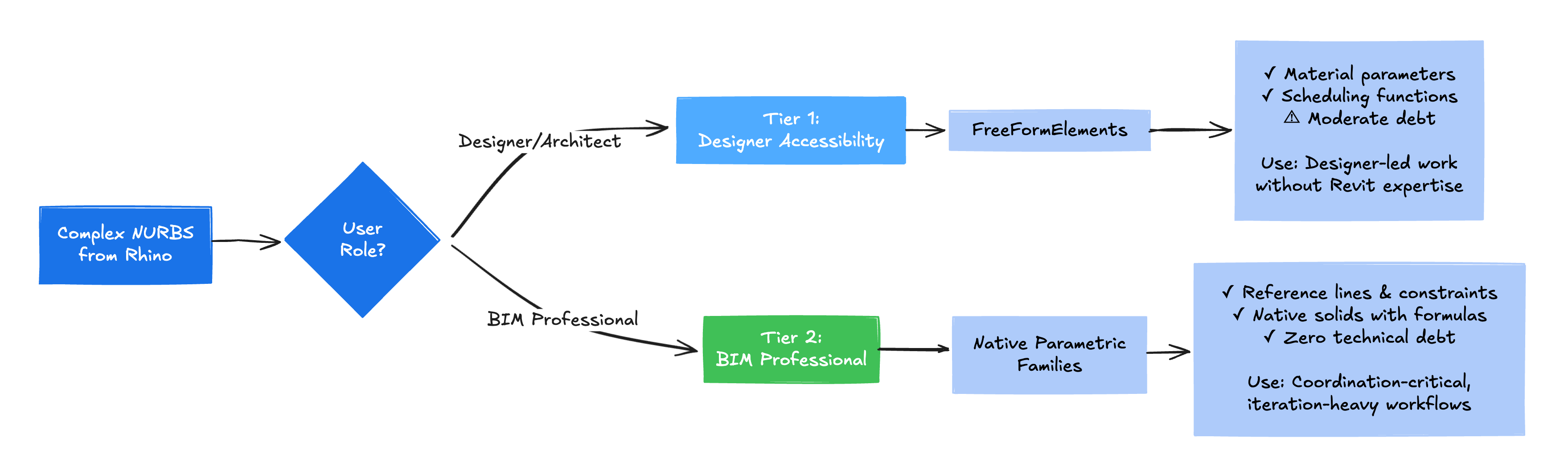

We built Senibina-Bridge with tiered workflows matching different BIM participation levels:

Tier 1 enables designer accessibility. Complex NURBS surfaces from Rhino become FreeFormElements in Revit family files. This isn't fully parametric—you're working with non-parametric geometry that carries some technical debt. But it provides substantial improvement over DirectShapes or raw imports: material parameters work, scheduling functions properly, family context exists. Most importantly, it allows architects and designers to participate in BIM workflows without requiring deep Revit family modeling expertise.

This matters because most BIM users in design roles work at project level: placing walls, floors, doors, curtain systems. They're doing 3D modeling, not parametric family authoring. Tier 1 bridges these designers into BIM coordination without forcing them to become Revit family specialists. The geometry isn't fully native, but it's "good enough" for participation in coordination workflows.

Tier 2 serves BIM professionals doing proper family modeling. This generates true native parametric families: reference lines, model lines, native solids (extrusions, sweeps, revolves), dimensions, constraints, formulas. This is the technical stack most BIM Managers, Coordinators, and Modellers work in—the domain of proper parametric family authoring.

Tier 2 eliminates technical debt entirely. The resulting families section reliably, schedule accurately, regenerate parametrically, and perform efficiently at coordination scale. This is where you invest when projects demand iteration-heavy workflows, complex coordination requirements, or long-term family library development.

The tiered approach reflects a reality: not everyone needs to work at the parametric family authoring level. Many designers benefit from accessible workflows that reduce, but don't eliminate technical debt, allowing BIM participation without extensive Revit training. BIM professionals handling coordination-critical work benefit from tools that generate fully parametric families efficiently.

The strategic choice: establish clear standards for when each tier applies. Use Tier 1 for designer-led workflows where moderate technical debt is acceptable trade-off for accessibility. Use Tier 2 when projects demand zero-debt parametric families with full iteration capability. Don't conflate the two or expect Tier 1 outputs to perform like Tier 2.

When practices have accessible methods for generating appropriate geometry for different contexts, the technical debt argument becomes concrete: imports might save 30 minutes initially, but they create hours of downstream costs. FreeFormElements provide middle-ground participation but still carry debt. True native parametric families require modest upfront investment but eliminate cumulative debt entirely.

The technical barrier no longer justifies accepting maximum technical debt. Choose the appropriate tier for your workflow context, but choose consciously.

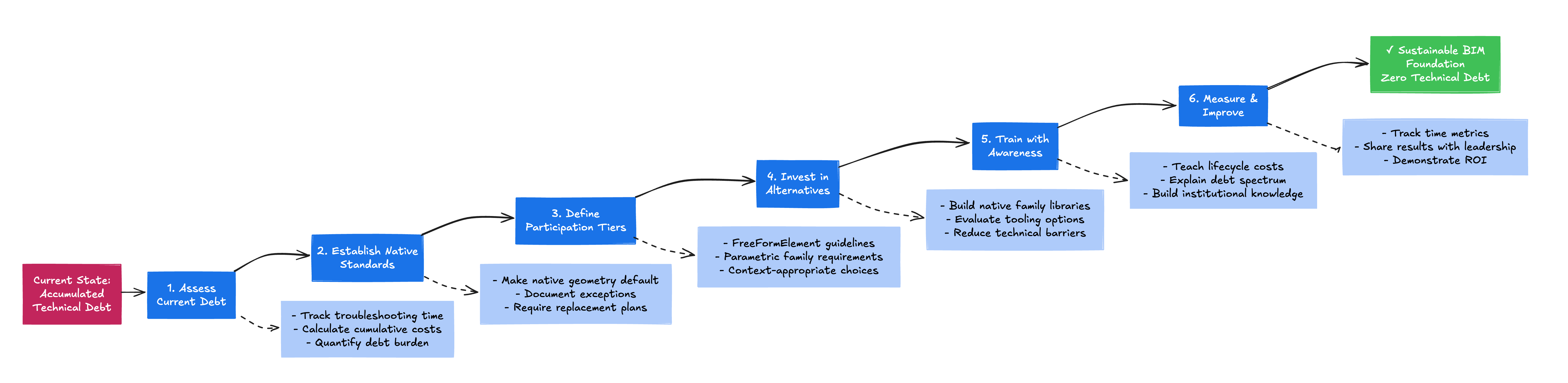

Moving forward

For architecture and design consultancies evaluating BIM workflow foundation:

Assess current debt: Track time spent on import-related troubleshooting across recent projects. Calculate cumulative costs of section fixes, material assignment problems, coordination performance issues, and schedule workarounds. Quantify the debt you're carrying.

Establish native standards: Make native Revit geometry the default practice. Document specific exceptions where imports are acceptable (temporary placeholders, one-off visualizations, explicit client requirements). Require documentation explaining why import was necessary and plan for replacement with native elements.

Define participation tiers: Acknowledge that different team members work at different BIM sophistication levels. Establish clear guidelines: when is FreeFormElement-level participation acceptable (designer-led work, moderate coordination requirements), and when do projects demand fully parametric families (coordination-intensive, iteration-heavy workflows)?

Invest in accessible alternatives: Build native family libraries for commonly used components. Evaluate tools that generate appropriate geometry for different workflow contexts. Reduce technical barriers that justify continued reliance on imports.

Train with awareness: Ensure team members understand why native geometry matters, not just how to create it. Teach the lifecycle costs of shortcuts and the technical debt spectrum from imports through FreeFormElements to true parametric families. Build institutional knowledge around sustainable workflows.

Measure and improve: Track time metrics comparing native versus import workflows across full project lifecycles. Share results with decision-makers. Demonstrate ROI of sustainable practices versus apparent efficiency of shortcuts.

Expanding BIM requirements create external pressure for workflow evaluation. How practices respond (with sustainable workflows or accumulating technical debt) will determine competitive position for years. The foundation you establish now either amplifies capability or compounds cost.

Choose accordingly.
